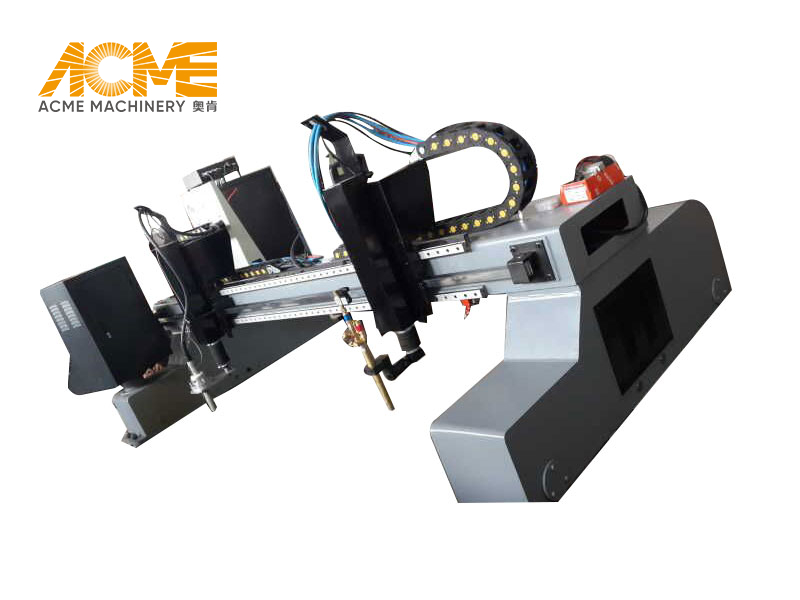

5m Automatic CNC Flame And Plasma Cutting Machine

Share to:

▲ Type: Flame and Plasma
▲ Effective Cutting Width: 4200mm
▲ Effective Cutting length: 12500mm
▲ Plasma Cutting Thickness: 6-60mm
▲ Flame Cutting Thickness: 6-200mm

  • CNC-PC5000
  • ACME
  • 84564010
Quantity:

Description

Overview:

Our CNC plasma cutting machine is designed for cutting mild steel plates from 6-60mm thick. Each of the cnc cutter can be configured for plasma cutting, flame cutting or both.

It has the following advantages.

  • producing less heat buildup in cuts

  • reduced warping when cutting thicker plates

  • producing cleaner cuts, reducing potential secondary processes

  • ability to cut highly reflective metals

  • being less expensive

  • having a tighter nozzle distance from the cutting material

FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.

Main Technical Parameters

Model

CNC-PC3000

CNC-PC4000

CNC-PC5000

CNC-PC6000

Rail Span(mm)

3000

4000

5000

6000

Rail Length(mm)

15000

15000

15000

15000

Effective Cutting Width(mm)

2200

3200

4200

5200

Effective Cutting Length(mm)

12500

12500

12500

12500

Flame Cutting Thickness(mm)

6-200

Plasma Cutting Thickness(mm)

6-60

Cutting Speed(mm/min)

20-800

Straight Strip Cutting Torch*(Optional)

9

9

9

9

CNC Flame Cutting Torch*(Optional)

1

1

1

1

CNC Plasma Cutting Torch

1 or 2

1 or 2

1 or 2

1 or 2

Drive Mode

Double Drive

Double Drive

Double Drive

Double Drive
