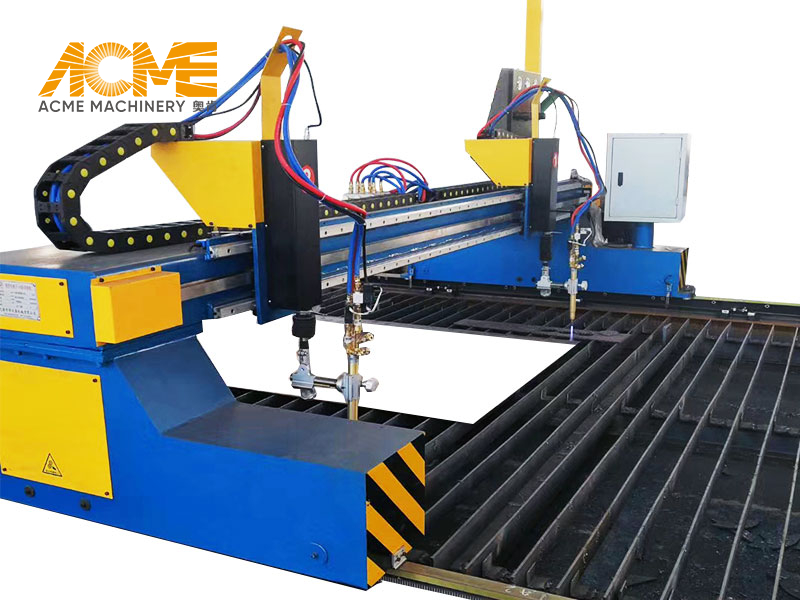

4m Gantry Type Metal CNC Flame Cutting Machine

Share to:

▲ Type: Flame
▲ Effective Cutting Width: 3200mm
▲ Effective Cutting length: 12500mm
▲ Cutting Thickness: 6-200mm

  • CNC-FC4000
  • ACME
  • 8461909000
Quantity:

Description

Overview:

The CNC Flame cutting machine uses a combination of fuel gases and oxygen to cut metal. A variety of different fuels may be utilized. The most common is acetylene, other gases utilized include natural gas, propane, hydrogen, propylene, liquified petroleum gas (LPG), and combinations of these gases.
This CNC gas cutting machine compared with plasma and laser, it is the most economical. Flame cutting begins by using a torch to heat a metal to its kindling temperature. This is the lowest temperature at which the metal in question will spontaneously ignite.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.

Main Technical Parameters

Model

CNC-FC3000

CNC-FC4000

CNC-FC5000

CNC-FC6000

Rail Span(mm)

3000

4000

5000

6000

Rail Length(mm)

15000

15000

15000

15000

Effective Cutting Width(mm)

2200

3200

4200

5200

Effective Cutting Length(mm)

12500

12500

12500

12500

Flame Cutting Thickness(mm)

6-200

Cutting Speed(mm/min)

20-800

Straight Strip Cutting Torch

9

9

9

9

CNC Flame Cutting Torch

2

2

2

2

Drive Mode

Double Drive

Double Drive

Double Drive

Double Drive
