WRZ-20
ACME
84688000
| Quantity: | |
|---|---|
Description

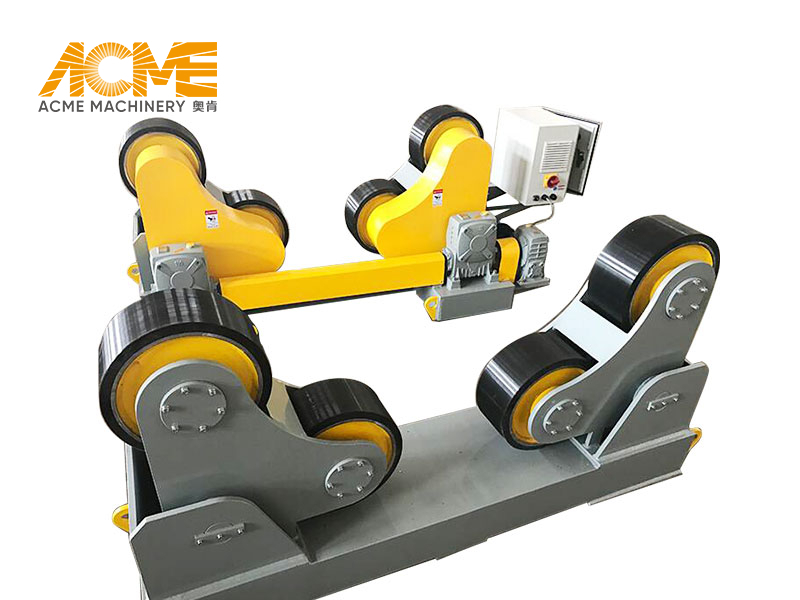

The main function of the self aligning welding rotator is to roll workpieces of different sizes without changing
the wheel center. According to the diameter of the workpiece, the swing of the roller group is automatically adjusted,
and no manual adjustment is required. Combined turning roller is with carrying capacity and strong driving ability. It is mainly used for
longitudinal and circular seam welding of cylinder or tank or vessel.
l Large loading capacity, strong driving capacity
l Operate by remote control, simple and reliable
l Steel and rubber roller, high temperature resistance
l high efficiency, high precision, large adjustment range
We also can provide all kinds of special welding turning rolls, such as movable turning roller, fit-up turning rolls and
tilting welding rotator etc.
Q1: What is the warranty period?
A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.
Q2: How long is the delivery time?
A: Usually within 30days.
Q3: How about payment term?
A: T/T or L/C.
Q4: Do you test products before delivery?
A: Yes, we test 100% our products before delivery.
Main Technical Parameters
Model | WRZ-5 | WRZ-10 | WRZ-20 | WRZ-40 | WRZ-60 | WRZ-80 | WRZ-100 | WRZ-150 | |||
Loading Capacity(T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | |||
Workpiece Diameter | Min.(mm) | 250 | 320 | 500 | 600 | 700 | 850 | 1000 | 1000 | ||
Max.(mm) | 2500 | 3200 | 3800 | 4500 | 5000 | 5500 | 6500 | 6500 | |||
Roller Size | Diameter(mm) | 200 | 250 | 300 | 350 | 400 | 450 | 450 | 500 | ||
Width(mm) | 100 | 120 | 150 | 160 | 180 | 200 | 240 | 300 | |||
Motor Power(kw) | Single Drive | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 7.5 | ||
Dual-Drive | / | / | / | 2*1.5 | 2*2 | 2*2 | 2*3 | 2*4 | |||
Roller Linear Speed(mm/min) | 100-1000 | ||||||||||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | ||||||||||
Model | WRZ-200 | WRZ-300 | WRZ-500 | |
Loading Capacity(T) | 200 | 300 | 500 | |
Workpiece Diameter | Min.(mm) | 1200 | 1500 | 1800 |
Max.(mm) | 7000 | 8000 | 8000 | |
Roller Size | Diameter(mm) | 500 | 600 | 850 |
Width(mm) | 350 | 400 | 450 | |
Motor Power(kw) | 2*4 | 2*5.5 | 2*7.5 | |
Roller Linear Speed(m/h) | 100-1000 | |||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | |||
