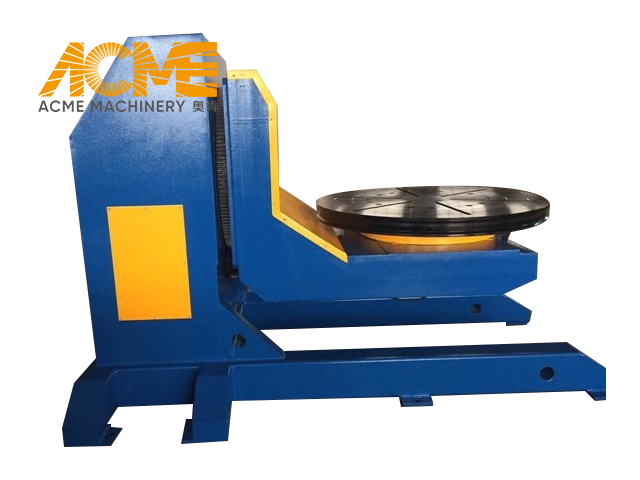

L Type Rotary Welding Positioner For Pipe

Share to:

▲ Loading Capacity: 5T
▲ Type: L type
▲ Function: lifting / rotating / tilting
▲ Tilting Angle: 360°
▲ Rotating Angle: 360°
▲ Application: pipe / vessel / tank

  • WPL-5
  • ACME
  • 84688000
Quantity:

Product Description

Overview:

The working device of the rotary welding positioner is l-shaped and has two degrees of freedom of rotation. It can tilt ±360° in both directions. The advantage of this L type welding positioner is good open, easy to operate. It can rotate, tilt and lift the workpiece to let the welding seam is placed in the horizontal and other good position for welding. The loading capacity of this welding turning table is 5T.


Customized Service:

We also can design different welding positioner according to different workpiece or process requirement.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.

Technical Parameters

ModelWPL-03WPL-06WPL-3WPL-5WPL-10WPL-15
Loading Capacity(KG)300600300050001000015000
Worktable Diameter(mm)60010001400150020002200
Rotating Speed(rpm)0.1-10.09-0.90.05-0.50.05-0.50.05-0.50.04-0.4
Tilting Speed(rpm)10.420.230.20.20.15
Tilting Angle(°)360°360°360°360°360°360°
Speed Adjust ModeAC Frequency conversion stepless speed regulation
