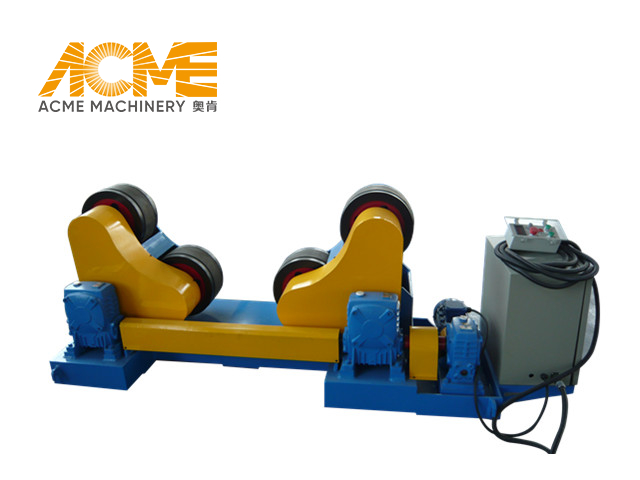

5T Cylinder Conventional Pipe Self Adjustable Welding Rotator

Share to:

▲Loading Capacity: 5T
▲Type: Self Aligning
▲Roller Material: Steel+Rubber
▲Suitable Workpiece Dia.: φ250-2500mm

  • WRZ-5
  • ACME
  • 84688000
Quantity:

Description

Overview:

Welding turning rolls is a kind of auxiliary equipment for automatic welding. The main function of the self aligned welding rotator is to roll workpieces of different sizes without changing the wheel center. According to the diameter of the workpiece, the swing of the roller group is automatically adjusted, and no manual adjustment is required. Combined turning roller is with carrying capacity and strong driving ability. Such self aligning welding rotator is mainly used for longitudinal and circular seam welding of cylinder or tank or vessel.


Advantages:


l   Large loading capacity, strong driving capacity

l   Operate by remote control, simple and reliable

l Steel and rubber roller, high temperature resistance

l   high efficiency, high precision, large adjustment range


Customized Service:


We also can provide all kinds of special welding turning rolls, such as movable turning roller, fit-up turning rolls and

tilting welding rotator etc.

FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Main Technical Parameters

Model

WRZ-5

WRZ-10

WRZ-20

WRZ-40

WRZ-60

WRZ-80

WRZ-100

WRZ-150

Loading Capacity(T)

5

10

20

40

60

80

100

150

Workpiece Diameter

Min.(mm)

250

320

500

600

700

850

1000

1000

Max.(mm)

2500

3200

3800

4500

5000

5500

6500

6500

Roller Size

Diameter(mm)

200

250

300

350

400

450

450

500

Width(mm)

100

120

150

160

180

200

240

300

Motor Power(kw)

Single Drive

0.75

1.1

1.5

3

4

4

5.5

7.5

Dual-Drive

/

/

/

2*1.5

2*2

2*2

2*3

2*4

Roller Linear Speed(mm/min)

100-1000

Speed Adjust Mode

AC Frequency conversion stepless speed regulation

Model

WRZ-200

WRZ-300

WRZ-500

Loading Capacity(T)

200

300

500

Workpiece Diameter

Min.(mm)

1200

1500

1800

Max.(mm)

7000

8000

8000

Roller Size

Diameter(mm)

500

600

850

Width(mm)

350

400

450

Motor Power(kw)

2*4

2*5.5

2*7.5

Roller Linear Speed(m/h)

100-1000

Speed Adjust Mode

AC Frequency conversion stepless speed regulation
