WRZ-80
ACME
84688000
| Quantity: | |
|---|---|
Description

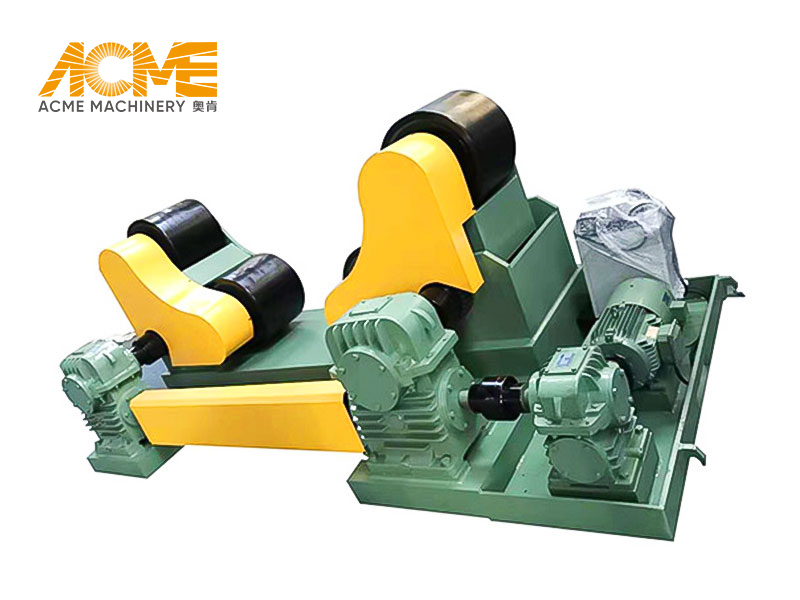

The workpiece is putted on the drive and idle rollers, the motor drives the drive roller working through driving system. When the drive roller running, the friction between workpiece and drive roller can drive the workpiece rotating. Each swing arms of the self-adjusting turning roller can drive workpiece to adjust the diameter automatically, so that the labor power is saved much and the work efficiency is increased.
This conventional self aligning welding rotator is widely used in such field like wind power, pressure vessel, petrifaction steel pipe, steel structure, and overlaying industries.
l Large loading capacity, strong driving capacity
l Operate by remote control, simple and reliable
l Polyurethane roller, wear-resistant, acid and alkali resistant, pressure resistant and anti-aging, high temperature resistance
l High efficiency, high precision, large adjustment range
We also can provide all kinds of special welding turning rolls, such as movable turning roller, fit up turning rolls and
tilting welding rotator etc.
Q1: What is the warranty period?
A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.
Q2: How long is the delivery time?
A: Usually within 30days.
Q3: How about payment term?
A: T/T or L/C.
Q4: Do you test products before delivery?
A: Yes, we test 100% our products before delivery.
Main Technical Parameters
Model | WRZ-5 | WRZ-10 | WRZ-20 | WRZ-40 | WRZ-60 | WRZ-80 | WRZ-100 | WRZ-150 | |||
Loading Capacity(T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 150 | |||
Workpiece Diameter | Min.(mm) | 250 | 320 | 500 | 600 | 700 | 850 | 1000 | 1000 | ||
Max.(mm) | 2500 | 3200 | 3800 | 4500 | 5000 | 5500 | 6500 | 6500 | |||
Roller Size | Diameter(mm) | 200 | 250 | 300 | 350 | 400 | 450 | 450 | 500 | ||
Width(mm) | 100 | 120 | 150 | 160 | 180 | 200 | 240 | 300 | |||
Motor Power(kw) | Single Drive | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 7.5 | ||
Dual-Drive | / | / | / | 2*1.5 | 2*2 | 2*2 | 2*3 | 2*4 | |||
Roller Linear Speed(mm/min) | 100-1000 | ||||||||||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | ||||||||||
Model | WRZ-200 | WRZ-300 | WRZ-500 | |
Loading Capacity(T) | 200 | 300 | 500 | |
Workpiece Diameter | Min.(mm) | 1200 | 1500 | 1800 |
Max.(mm) | 7000 | 8000 | 8000 | |
Roller Size | Diameter(mm) | 500 | 600 | 850 |
Width(mm) | 350 | 400 | 450 | |
Motor Power(kw) | 2*4 | 2*5.5 | 2*7.5 | |
Roller Linear Speed(m/h) | 100-1000 | |||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | |||
