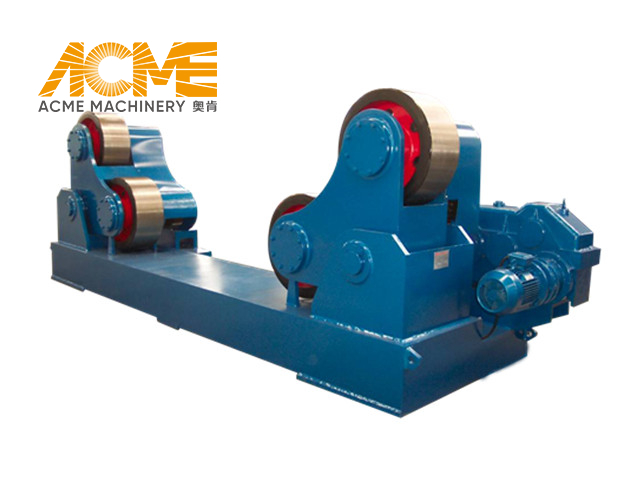

Turning Roll Self- Aligned Welding Rotator 120 Tons

Share to:

▲ Loading Capacity: 120T
▲ Type: Self Aligning
▲ Roller Material: Steel
▲ Suitable Workpiece Dia.: φ1000-6500mm

  • WRZ-120
  • ACME
  • 84688000
Quantity:

Description

Overview:

The self-aligned welding rotator is composed by one set of driving unit and one set of idler unit, it also can be customized made one set of driving unit and many sets of idler units according to clients’requirements. The turning roller’s pivot angle can be adjusted automatically according to workpieces’ dimension, no need manual adjustment. Driving unit’s 4 wheels with gear engagement transmission, realized 4 wheels driven. The wheel materials have polyurethane adhesive wheel, steel wheel and rubber + steel wheel. Driving turning roll’s start, stop, positive rotation, reverse rotation and speed adjustment is operated by remote control box.


Customized Service:

We also can provide all kinds of special welding turning rolls, such as movable turning roller, fit up welding rotator and tilting welding rotator etc.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Main Technical Parameters

Model

WRZ-5

WRZ-10

WRZ-20

WRZ-40

WRZ-60

WRZ-80

WRZ-100

WRZ-150

Loading Capacity(T)

5

10

20

40

60

80

100

150

Workpiece Diameter

Min.(mm)

250

320

500

600

700

850

1000

1000

Max.(mm)

2500

3200

3800

4500

5000

5500

6500

6500

Roller Size

Diameter(mm)

200

250

300

350

400

450

450

500

Width(mm)

100

120

150

160

180

200

240

300

Motor Power(kw)

Single Drive

0.75

1.1

1.5

3

4

4

5.5

7.5

Dual-Drive

/

/

/

2*1.5

2*2

2*2

2*3

2*4

Roller Linear Speed(mm/min)

100-1000

Speed Adjust Mode

AC Frequency conversion stepless speed regulation

Model

WRZ-200

WRZ-300

WRZ-500

Loading Capacity(T)

200

300

500

Workpiece Diameter

Min.(mm)

1200

1500

1800

Max.(mm)

7000

8000

8000

Roller Size

Diameter(mm)

500

600

850

Width(mm)

350

400

450

Motor Power(kw)

2*4

2*5.5

2*7.5

Roller Linear Speed(m/h)

100-1000

Speed Adjust Mode

AC Frequency conversion stepless speed regulation
