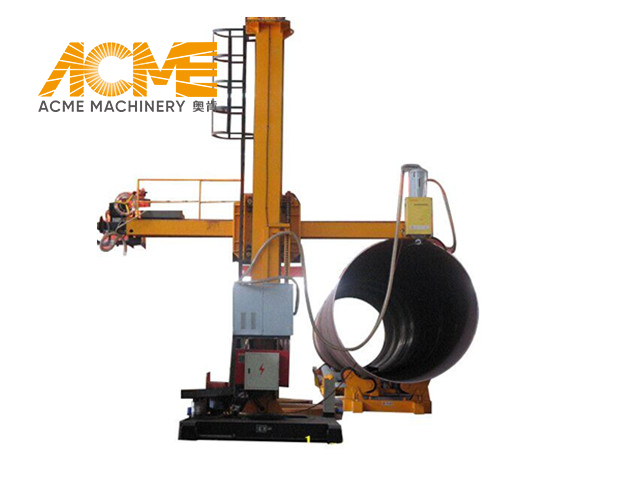

Rotary Column And Boom Welding Wire Manipulator

Share to:

▲ Type: Fixed type
▲ Stoke: 4000x5000mm

  • FWM-0405
  • ACME
  • 84688000
Quantity:

Description

Overview:

Column & boom manipulator and welding turning table and welding turning roller can combine into automatic welding center, it is suitable for wind tower production line and pipe production line. We have 3 types, that is, fixed welding manipulator, rotary welding manipulator and moving welding manipulator. according to user’s requirements, we also can choose structure or equipped with different kinds of welding machines and adding tracking, swing, monitoring, solder recycling& conveying functions. The plateform welding manipulator is widely used for automatic welding of inner and outer longitudinal seam, inner and outer circle seam in boiler, pressure vessel, petroleum, chemical, machinery and other manufacturing industries.


Advantage:

  • Both the column and boom are rectangular beams which finish machining after tempered to ensure higher precision requirement.

  • Horizontal stretch and retract of boom adopts gear and rack transmission with high precision and stability, no crawling, and no jitter.

  • We have protective device for boom lifting to make sure its lifting safety.

  • Cross slider equipped in front of the boom to realize welding torch to go up and down and left and right.

  • Column is equipped with safety ladder, which is convenient for maintenance.

  • Submerged arc welding equipment, Flux recovery equipment, Seam trackers are optional.

  • The main components of our welding turning table adopts famous brands that have after-sales service agencys all over the world.

FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.

Main Technical Parameters

Model

Mini

Light-duty

Middle

FWM-0101

FWM-1515

FWM-0202

FWM-0203

FWM-0303

FWM-0304

FWM-0404

FWM-0405

Vertical Stroke(mm)

1000

1500

2000

2000

3000

3000

4000

4000

Horizontal Stroke(mm)

1000

1500

2000

3000

3000

4000

4000

5000

Lifting Speed(mm/min)

300

1000

1000

Rotating Angle(°)

0

Trolley Span(mm)

800

1200

2000

Max load at the end of Boom(kg)

50

100

100

150

200

Model

Heavy-duty

FWM-0505

FWM-0606

FWM-0707

FWM-0808

Vertical Stroke(mm)

5000

6000

7000

8000

Horizontal Stroke(mm)

5000

6000

7000

8000

Lifting Speed(mm/min)

1400

Rotating Angle(°)

0

Trolley Span(mm)

2500

Max load at the end of Boom(kg)

300
