WRK-40
ACME
84688000
| Quantity: | |
|---|---|
Description

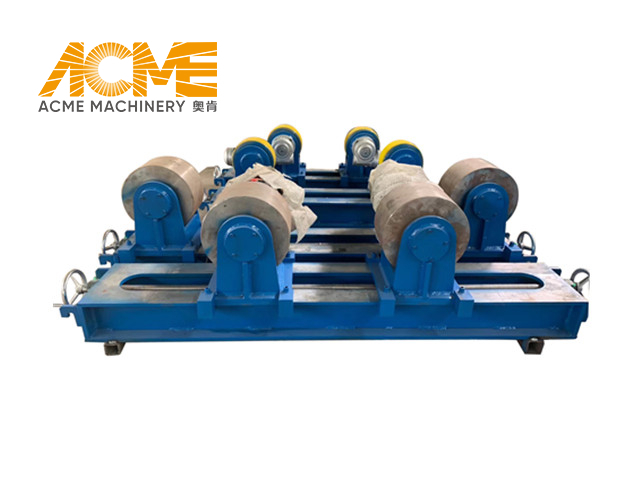

Adjustable welding rotator is used for cylinder workpiece welding, polishing, assembling and etc. The adjustable type could change the rollers' distance through manual screw, automatic screw or screw bolt adjustment. This lead screw turning rolls adopts double reducers and double motor drive with strong driving force. It also adopts high quality speed controller with inverter, reliable performance. Speed is variable frequency stepless speed regulation.
Welding turning roller consists of two parts:
1. A Drive(Power) unit
2. An Idle(extra) unit
We also can make different kinds of pipe welding rotators, such as walking type, bolt adjustment type, lifting type, fit up type and inclined type, etc.
Q1: What is the warranty period?
A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.
Q2: How long is the delivery time?
A: Usually within 30days.
Q3: How about payment term?
A: T/T or L/C.
Q4: Do you test products before delivery?
A: Yes, we test 100% our products before delivery.
Main Technical Parameters
Model | WRK-2 | WRK-5 | WRK-10 | WRK-20 | WRK-40 | WRK-60 | WRK-80 | WRK-100 | |
Loading Capacity(T) | 2 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | |
Workpiece Diameter | Min.(mm) | 150 | 250 | 300 | 500 | 500 | 500 | 500 | 500 |
Max.(mm) | 2000 | 2800 | 3200 | 4500 | 5000 | 5500 | 6000 | 6000 | |
Roller Size | Diameter(mm) | 200 | 250 | 300 | 350 | 400 | 450 | 450 | 500 |
Width(mm) | 80 | 120 | 130 | 180 | 220 | 360 | 360 | 400 | |
Motor Power(kw) | 2*0.18 | 2*0.37 | 2*0.55 | 2*1.1 | 2*1.5 | 2*2.2 | 2*3 | 2*3 | |
Roller Linear Speed(mm/min) | 100-1000 | ||||||||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | ||||||||
Model | WRK-120 | WRK-160 | WRK-200 | WRK-250 | WRK-300 | WRK-500 | WRK-800 | WRK-1200 | |
Loading Capacity(T) | 120 | 160 | 200 | 250 | 300 | 500 | 800 | 1200 | |
Workpiece Diameter | Min.(mm) | 800 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 |
Max.(mm) | 6000 | 6000 | 6500 | 6500 | 6500 | 8000 | 8000 | 8000 | |
Roller Size | Diameter(mm) | 500 | 600 | 700 | 700 | 800 | 800 | 900 | 1000 |
Width(mm) | 200 | 200 | 250 | 250 | 300 | 350 | 400 | 480 | |
Motor Power(kw) | 2*3 | 2*4 | 2*4 | 2*5.5 | 2*5.5 | 2*7.5 | 2*11 | 2*15 | |
Roller Linear Speed(m/h) | 100-1000 | ||||||||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | ||||||||
