SWR-10
ACME
84688000
| Quantity: | |
|---|---|
Description

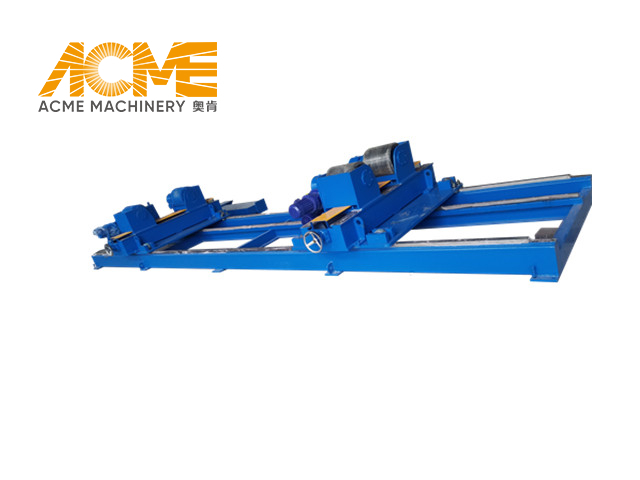

Adjustable welding tank rotator is used for cylinder workpiece welding, polishing, assembling and etc. The adjustable type could change the wheels' distance through manual screw, automatic screw or screw bolt adjustment. It is controlled by AC frequency converter and the linear speed is displayed digitally. This kind of specical walking welding rotator has one advantage, that is, we can adjust the distance between of drive unit and idle unit by the remote control according to the tank length instead of by manual. The special turning rolls is advance and can reduce labor force and improve work efficiency. For special need, we can design and manufacture other models accordingly.
Main Technical Parameters
Model | SWR-2 | SWR-5 | SWR-10 | SWR-20 | SWR-40 | SWR-60 | SWR-80 | SWR-100 | |
Loading Capacity(T) | 2 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | |
Workpiece Diameter | Min.(mm) | 150 | 250 | 300 | 500 | 500 | 500 | 500 | 500 |
Max.(mm) | 2000 | 2800 | 3200 | 4500 | 5000 | 5500 | 6000 | 6000 | |
Roller Size | Diameter(mm) | 200 | 250 | 300 | 350 | 400 | 450 | 450 | 500 |
Width(mm) | 80 | 120 | 130 | 180 | 220 | 360 | 360 | 400 | |
Motor Power(kw) | 2*0.18 | 2*0.37 | 2*0.55 | 2*1.1 | 2*1.5 | 2*2.2 | 2*3 | 2*3 | |
Roller Linear Speed(mm/min) | 100-1000 | ||||||||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | ||||||||
