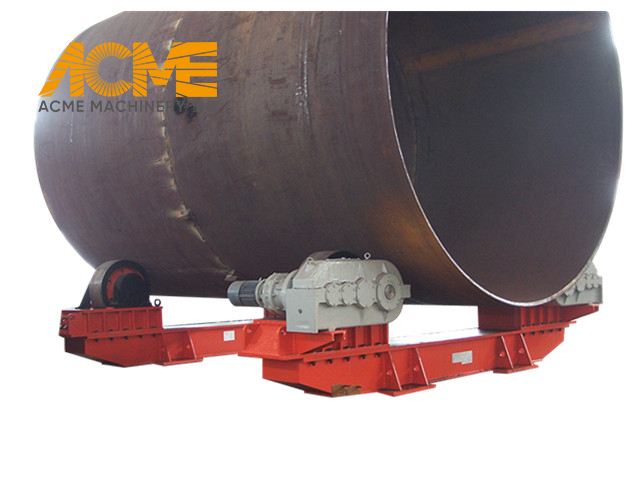

150T Industrial Large Adjustable Welding Rotator For Tank

Share to:

▲Loading Capacity: 150T
▲Type: Adjustable
▲Roller Material: Steel or PU
▲Suitable Workpiece Dia.: φ800-6000mm

  • WRK-150
  • ACME
  • 84688000
Quantity:

Description

Overview:

Adjustable welding turning rolls is used for cylinder workpiece welding, polishing, assembling and etc. The adjustable type could change the rollers' distance through manual screw, automatic screw or screw bolt adjustment. This adjustable turning rolls adopts double reducers and double motor drive with strong driving force. It also adopts explosion-proof motor and box reducer. Speed is variable frequency stepless speed regulation. Such industrial welding rotator is widely used wind power production line, petroleum industry, pipeline industry, shipbuilding industry etc.


Customized Service:


We also can make different kinds of pipe welding rotators, such as walking type, bolt adjustment type, lifting type, fit up type and inclined type, etc.

FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Main Technical Parameters

Model

WRK-2

WRK-5

WRK-10

WRK-20

WRK-40

WRK-60

WRK-80

WRK-100

Loading Capacity(T)

2

5

10

20

40

60

80

100

Workpiece Diameter

Min.(mm)

150

250

300

500

500

500

500

500

Max.(mm)

2000

2800

3200

4500

5000

5500

6000

6000

Roller Size

Diameter(mm)

200

250

300

350

400

450

450

500

Width(mm)

80

120

130

180

220

360

360

400

Motor Power(kw)

2*0.18

2*0.37

2*0.55

2*1.1

2*1.5

2*2.2

2*3

2*3

Roller Linear Speed(mm/min)

100-1000

Speed Adjust Mode

AC Frequency conversion stepless speed regulation

Model

WRK-120

WRK-160

WRK-200

WRK-250

WRK-300

WRK-500

WRK-800

WRK-1200

Loading Capacity(T)

120

160

200

250

300

500

800

1200

Workpiece Diameter

Min.(mm)

800

800

800

800

800

1000

1000

1000

Max.(mm)

6000

6000

6500

6500

6500

8000

8000

8000

Roller Size

Diameter(mm)

500

600

700

700

800

800

900

1000

Width(mm)

200

200

250

250

300

350

400

480

Motor Power(kw)

2*3

2*4

2*4

2*5.5

2*5.5

2*7.5

2*11

2*15

Roller Linear Speed(m/h)

100-1000

Speed Adjust Mode

AC Frequency conversion stepless speed regulation
