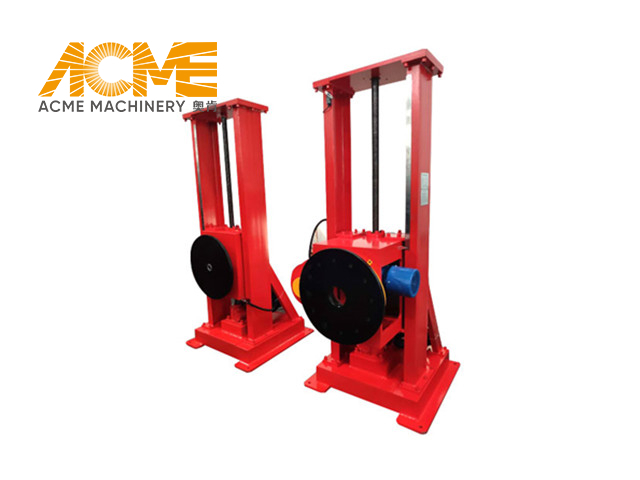

Customized Double Column Elevating Welding Positioner

Share to:

▲ Loading Capacity: 1T
▲ Type: Head and Tail type
▲ Function: lifting / tilting
▲ Tilting Angle: 360°
▲ Lifting Height: as per design

  • WPD-1
  • ACME
  • 84688000
Quantity:

Product Description

Overview:

  • The structure of double column welding positioner is made of welded steel plates of two rectangular tubes.

  • Headstock welding positioner has driving column and idle column. The overturning drive mechanism is installed on the driving lifting column.

  • The overturning drive mechanism is the transmission mechanism of the overturning torque. The power is provided by the electric brake motor,  and slewing bearing is driven by reduction gear. Slewing bearing is installed on the rotary table.

  • Lifting transmission mechanism of head and tail welding positioner is with lead screw that lifting speed is stable and brake is reliable, and also can stop at any position. The two columns are provided with measuring rods. When the lifting height is deviated at the two sides, users can make the two sides at the same height by point moving.

  • Electric control system uses PLC to realize control. The speed is measured by the encoder to make sure the motors up and down synchronously.

Customized Service:

       We also can design different welding turning table according to different workpiece or process requirement.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.

Technical Parameters

ModelWPD-03WPD-1WPD-3WPD-5WPD-10WPD-15
Loading Capacity(KG)3001000300050001000015000
Worktable Diameter(mm)60010001400150020002200
Lifting Height(mm)                                                As per design
Tilting Speed(rpm)10.420.230.20.20.15
Tilting Angle(°)360°360°360°360°360°360°
Speed Adjust ModeAC Frequency conversion stepless speed regulation
