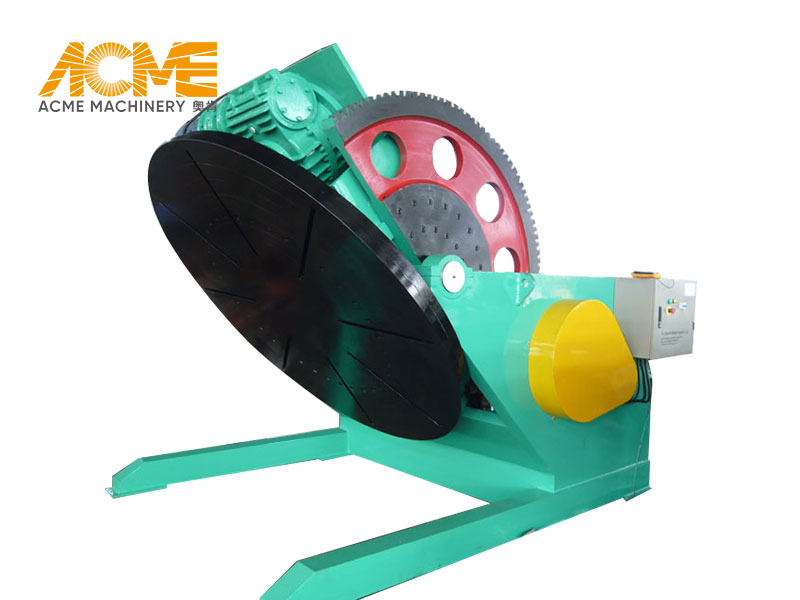

3T Industrial Benchtop Overturning Welding Positioners

Share to:

▲ Loading Capacity: 3T
▲ Type: Table Top type
▲ Function: rotating / tilting
▲ Tilting Angle: 0°-135°
▲ Rotating Angle: 360°

  • WP-3
  • ACME
  • 84688000
Quantity:

Description

Overview:

Industrial Welding Positioner is a assistant machine ideally suited for jobs requiring rotary fixturing & positioning for welding & grinding & polishing & machining & assembly etc.. This overturning welding positioner provides tilting and rotating function to manipulate workpiece mounted on the table top to any desired position for optimal position. We have various models which cater for workpiece loading capacities, ranging from 100 kg to 50000 kg.


Customized Service:

 We also can design different welding positioner according to different workpiece or process requirement.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Main Technical Parameters

Model

WP-01

WP-03

WP-06

WP-1

WP-3

WP-5

WP-10

WP-15

Loading Capacity(KG)

100

300

600

1000

3000

5000

10000

15000

Worktable Diameter(mm)

400

600

1000

1000

1400

1500

2000

2200

Rotating Speed(rpm)

0.4-4

0.1-1

0.09-0.9

0.05-0.5

0.05-0.5

0.05-0.5

0.05-0.5

0.04-0.4

Tilting Speed(rpm)

Manual

1

0.42

0.4

0.23

0.2

0.2

0.15

Tilting Angle(°)

0-90°

0-120°

0-135°

Max.Eccentricity(mm)

100

150

150

200

200

200

200

200

Max.Gravity(mm)

200

200

200

250

300

300

400

500

Rotating Motor Power(kw)

0.18

0.18

0.75

1.1

1.1

1.5

3

4

Tilting Motor Power(kw)

/

0.18

0.75

1.1

2.2

3

4

7.5

Speed Adjust Mode

AC Frequency conversion stepless speed regulation

Model

WP-20

WP-30

WP-50

Loading Capacity(T)

20000

30000

50000

Worktable Diameter(mm)

2500

3000

4000

Rotating Speed(rpm)

0.04-0.4

0.03-0.3

0.02-0.2

Tilting Speed(rpm)

0.15

0.15

0.06

Tilting Angle(°)

-45-90°

Max.Eccentricity(mm)

200

200

200

Max.Gravity(mm)

600

650

800

Rotating Motor Power(kw)

5.5

5.5

11

Tilting Motor Power(kw)

11

15

18.5

Speed Adjust Mode

AC Frequency conversion stepless speed regulation
