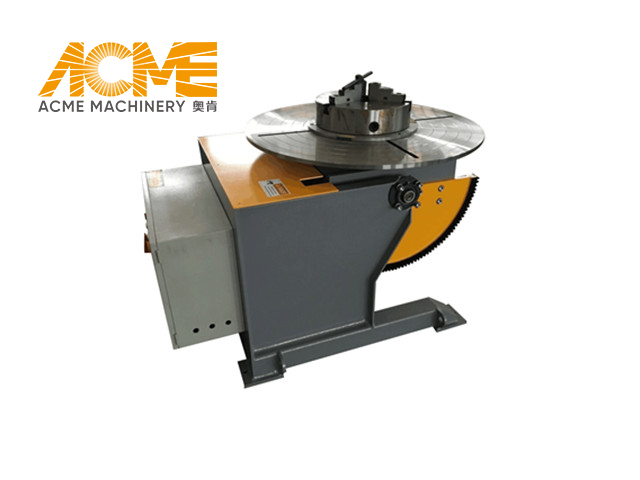

2T Capacity Table Top Rotary Welding Positioner

Share to:

▲ Loading Capacity: 2T
▲ Function: rotating / tilting
▲ Rotating Angle: 360°
▲ Tilting Angle: 0°-120°

  • WP-2
  • ACME
  • 84688000
Quantity:

Product Description

Overview:

  • Welding turning table is mainly composed of worktable rotating unit and tilting unit and electric control system.

  • Welding rotary table has powered tilting and rotating, making the work-piece at ideal position.

  • Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed.

  • Rotating unit is driven by motor. It has a precise speed-adjusting and reliable position.

  • Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.

  • The overturning welding positioner can work with welding column& boom to realize the automatic special purpose welding center. As robot peripherals, it can also work with robot to realize automatic welding.

Customized Service:

       We also can design different welding turning table according to different workpiece or process requirement.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Technical Parameters

ModelWP-03WP-1WP-2WP-3WP-5WP-10WP-15
Loading Capacity(KG)30010002000300050001000015000
Worktable Diameter(mm)600100013001400150020002200
Rotating Speed(rpm)0.1-10.05-0.50.05-0.50.05-0.50.05-0.50.05-0.50.04-0.4
Tilting Speed(rpm)10.40.30.230.20.20.15
Tilting Angle(°)0°-90°0°-120°0°-120°0°-135°0°-135°0°-135°0°-135°
Speed Adjust Mode                                AC Frequency conversion stepless speed regulation
