WP-3-2
ACME
84688000
| Quantity: | |
|---|---|
Description

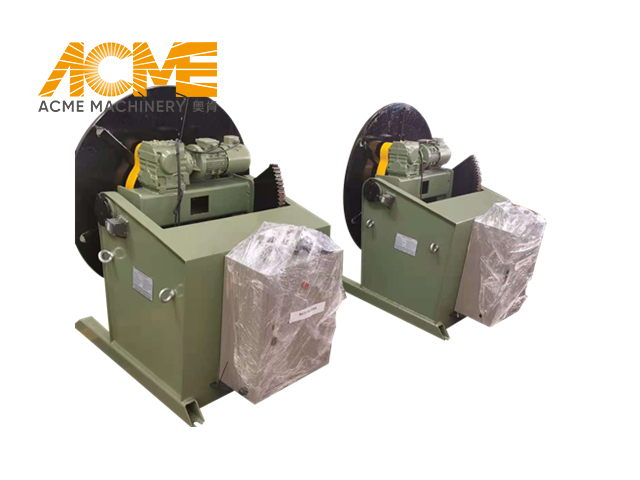

Welding Positioner is one of our hot products, expect welding rotator and welding manipulator. It is a assistant machine ideally suited for jobs requiring rotary fixturing & positioning for welding & grinding & polishing & machining & assembly etc.. This seat type welding positioner provides tilting and rotating function to manipulate workpiece mounted on the table top to any desired position for optimal position. We have various models which cater for workpiece loading capacities, ranging from 100 kg to 50000 kg.
We also can design different positioner according to different workpiece or process requirement, such as welding turning table, hydraulic welding positioner, double column welding positioner, L type welding positioner, C type welding positioner, elevating welding positioner etc.
Q1: What is the warranty period?
A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.
Q2: How long is the delivery time?
A: Usually within 30days.
Q3: How about payment term?
A: T/T or L/C.
Q4: Do you test products before delivery?
A: Yes, we test 100% our products before delivery.
Main Technical Parameters
Model | WP-01 | WP-03 | WP-06 | WP-1 | WP-3 | WP-5 | WP-10 | WP-15 | ||
Loading Capacity(KG) | 100 | 300 | 600 | 1000 | 3000 | 5000 | 10000 | 15000 | ||
Worktable Diameter(mm) | 400 | 600 | 1000 | 1000 | 1400 | 1500 | 2000 | 2200 | ||
Rotating Speed(rpm) | 0.4-4 | 0.1-1 | 0.09-0.9 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.04-0.4 | ||
Tilting Speed(rpm) | Manual | 1 | 0.42 | 0.4 | 0.23 | 0.2 | 0.2 | 0.15 | ||
Tilting Angle(°) | 0-90° | 0-120° | 0-135° | |||||||
Max.Eccentricity(mm) | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | ||
Max.Gravity(mm) | 200 | 200 | 200 | 250 | 300 | 300 | 400 | 500 | ||
Rotating Motor Power(kw) | 0.18 | 0.18 | 0.75 | 1.1 | 1.1 | 1.5 | 3 | 4 | ||
Tilting Motor Power(kw) | / | 0.18 | 0.75 | 1.1 | 2.2 | 3 | 4 | 7.5 | ||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | |||||||||
Model | WP-20 | WP-30 | WP-50 |
Loading Capacity(T) | 20000 | 30000 | 50000 |
Worktable Diameter(mm) | 2500 | 3000 | 4000 |
Rotating Speed(rpm) | 0.04-0.4 | 0.03-0.3 | 0.02-0.2 |
Tilting Speed(rpm) | 0.15 | 0.15 | 0.06 |
Tilting Angle(°) | -45-90° | ||
Max.Eccentricity(mm) | 200 | 200 | 200 |
Max.Gravity(mm) | 600 | 650 | 800 |
Rotating Motor Power(kw) | 5.5 | 5.5 | 11 |
Tilting Motor Power(kw) | 11 | 15 | 18.5 |
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | ||
