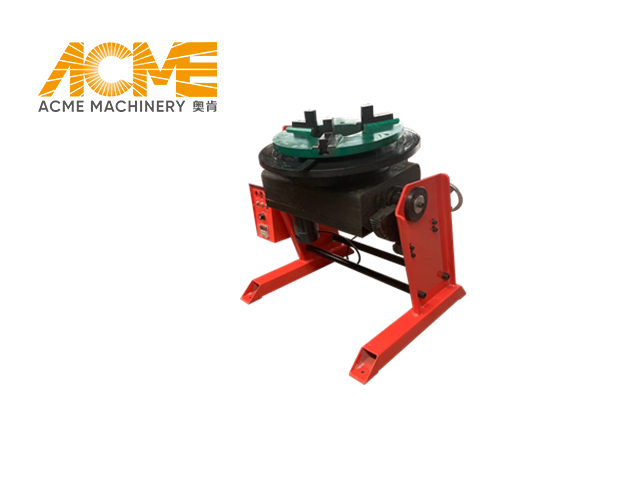

100kg Through Hole Pipe Welding Positioner With Chuck

Share to:

▲ Loading Capacity: 100kg
▲ Type: Table Top type
▲ Function: rotating / tilting
▲ Tilting Angle: 0°-90°
▲ Rotating Angle: 360°
▲ Tilting Mode: manual

  • WP-01
  • ACME
  • 84688000
Quantity:

Product Description

Overview:

100kg welding positioner is suitable for workpiece that the weight is less than 100kg and diameter is 10mm~500mm. It is with three jaw chuck, idler roller, adjustable armset and torch holder. Our chuck has model 200, model 300 and model 400. The clamping range of model 200 chuck is 20mm~210mm, model 300 chuck is 80mm~280mm, model 400 chuck is 120~380mm.



Customized Service:

We also can design different welding positioner according to different workpiece or process requirement.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Technical Parameters

ModelWP-01WP-03WP-06WP-3WP-5WP-10WP-15
Loading Capacity(KG)100300600300050001000015000
Worktable Diameter(mm)40060010001400150020002200
Rotating Speed(rpm)0.5-60.1-10.09-0.90.05-0.50.05-0.50.05-0.50.04-0.4
Tilting Speed(rpm)ManualManual0.420.230.20.20.15
Tilting Angle(°)90°90°120°135°135°135°135°
Speed Adjust Mode                   AC Frequency conversion stepless speed regulation
