6x6 Circular Seam Walk Welding Center Manipulator

Share to:

▲ Type: Movable with rotating type
▲ Stoke: 6000x6000mm

  • MWM-0606
  • ACME
  • 84688000
Quantity:

Description

Overview:

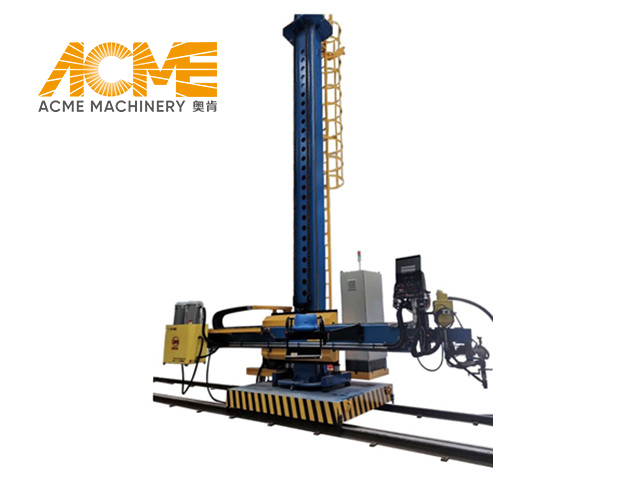

Welding column and boom is a kind of widely-used and high-automated auxiliary equipment in welding industry.Through the rotation of column and retraction & lifting of boom, the platform welding manipulator meets welding requirements of cylinders with different sizes. Welding head is fixed at one end of pipe welding manipulator to carry out automatic welding. This kind of column & boom manipulator could also be operated together with welding rotator turning roller to carry out round and longitudinal welding of inside and outside seam,which has got extensive application in Boiler, Petrochemical,Shipbuilding and Steel structure industries.

Feature:

  • Both the column and boom are rectangular beams which finish machining after goes through annealing treatment to ensure higher precision requirement.

  • Horizontal stretch and retract of boom adopts gear and rack transmission with high precision and stability, no crawling, and no jitter.

  •  Cross slider equipped in front of the boom to realize welding torch to go up and down and left and right.

  •  Anti-falling device to ensure the safety of boom lifting.

  • Column is equipped with safety ladder, which is convenient for maintenance.

  • Submerged arc welding equipment, Flux recovery equipment, Seam trackers are optional.

FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Main Technical Parameters

Model

Mini

Light-duty

Middle

MWM-0101

MWM-1515

MWM-0202

MWM-0203

MWM-0303

MWM-0304

MWM-0404

MWM-0405

Vertical Stroke(mm)

1000

1500

2000

2000

3000

3000

4000

4000

Horizontal Stroke(mm)

1000

1500

2000

3000

3000

4000

4000

5000

Lifting Speed(mm/min)

300

1000

1000

Rotating Angle(°)

0

Trolley Span(mm)

800

1200

2000

Max load at the end of Boom(kg)

50

100

100

150

200

Model

Heavy-duty

MWM-0505

MWM-0606

MWM-0707

MWM-0808

Vertical Stroke(mm)

5000

6000

7000

8000

Horizontal Stroke(mm)

5000

6000

7000

8000

Lifting Speed(mm/min)

1400

Rotating Angle(°)

0

Trolley Span(mm)

2500

Max load at the end of Boom(kg)

300
