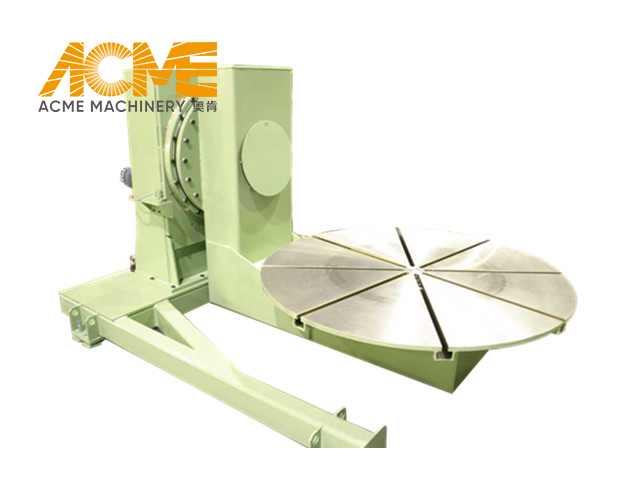

L Type Rotating Overturning Welding Turning Table

Share to:
▲ Loading Capacity: 3T
▲ Type: L type
▲ Function: lifting / rotating / tilting
▲ Rotating Angle: 360°
  • WPL-3
  • ACME
  • 84688000

Product Description


The l type rotary welding positioner has two degrees of freedom of rotation. It can tilt ±360° in both directions. The main components of our welding turning table adopts famous brands that have after-sales service agencys all over the world. The advantage of this L type welding positioner is good open, easy to operate. It can rotate, overturn and elevate the workpiece to let the welding seam is placed in the horizontal and other good position for welding.

Customized Service:

We also can design different welding positioner according to different workpiece or process requirement, such as c type welding positioner, u type welding positioner, head and tail welding positioner etc.


 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.

Technical Parameters

Loading Capacity(KG)300600300050001000015000
Worktable Diameter(mm)60010001400150020002200
Rotating Speed(rpm)0.1-10.09-0.90.05-0.50.05-0.50.05-0.50.04-0.4
Tilting Speed(rpm)10.420.
Tilting Angle(°)360°360°360°360°360°360°
Speed Adjust ModeAC Frequency conversion stepless speed regulation
