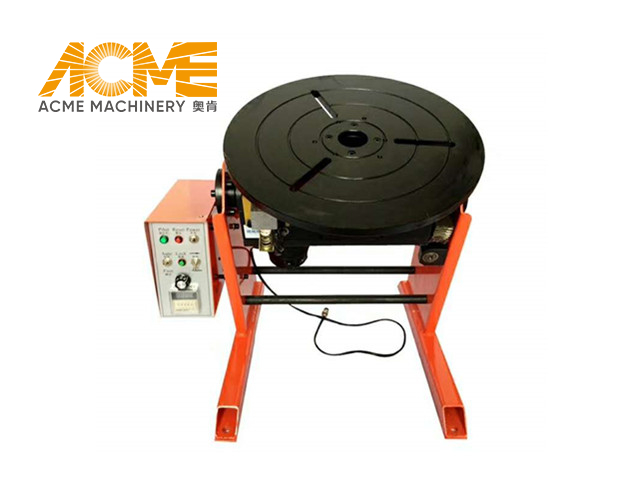

Light Manual Tilt Welding Positioner With Foot Switch

Share to:

▲ Loading Capacity: 300kg
▲ Type: Table Top type
▲ Function: rotating / tilting
▲ Tilting Angle: 0°-90°
▲ Rotating Angle: 360°
▲ Application: pipe / vessel / tank

  • WP-03
  • ACME
  • 84688000
Quantity:

Product Description

Overview:

Through rotating or tilting the worktable, pipe welding positioner is the device making the weld seam in a horizontal or boat-shaped position. Worktable rotates by using frequency conversion stepless. Its rotary table turning angle is 0° ~ 90°. The welding turning table can be supplied for interfacing with robot or welding manipulator to realize the welding automation.



Customized Service:

We also can design different welding positioner according to different workpiece or process requirement.


FAQ:

 Q1: What is the warranty period?

    A: 18 months. Within 18 months, under normal use and maintenance, if something wrong with our machines, we will provide spare parts for free. Out of 18 months, we will provide spare parts at cost prices.

 Q2: How long is the delivery time?

   A: Usually within 30days.

 Q3: How about payment term?

   A: T/T or L/C.

 Q4: Do you test products before delivery?

   A: Yes, we test 100% our products before delivery.


Technical Parameters

ModelWP-03WP-06WP-3WP-5WP-10WP-15
Loading Capacity(KG)300600300050001000015000
Worktable Diameter(mm)60010001400150020002200
Rotating Speed(rpm)0.1-10.09-0.90.05-0.50.05-0.50.05-0.50.04-0.4
Tilting Speed(rpm)Manual0.420.230.20.20.15
Tilting Angle(°)90°120°135°135°135°135°
Speed Adjust Mode                   AC Frequency conversion stepless speed regulation
